A4 系列
- 具有CLK定位功能、第一把刀位置刻記、LED指示燈

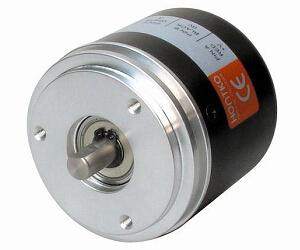

- 产品型号：A4 系列
- 产品品牌：HONTKO（鸿璿）
- 供应商：东莞绪初自动化科技有限公司
- 购买咨询：
- 基本信息

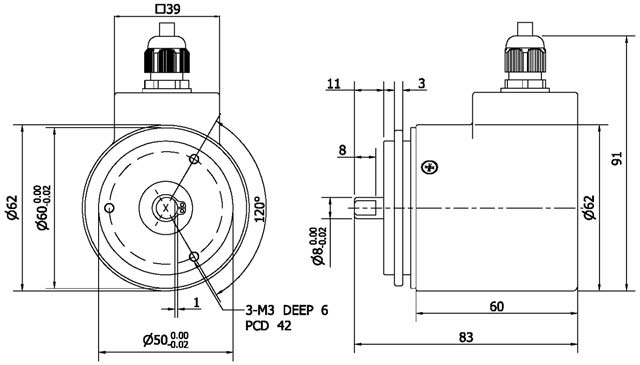

- 产品尺寸
Features 特 性
● With CLK/STB Positioning System
具有 CLK 定位功能
● With Z position Mark and LED Indicator
第一把刀位置刻記，方便安裝對位
第一刀位指示位置
First Tool Marking Position
第一刀位指示位置
First Tool Marking Position
bit 0 bit 1 bit 2 bit 3
CLK 1
0° 45° 90° 135° 180° 225° 270° 315° 360°
8 positions
[Binary Code]
bit 0 bit 1 bit 2 bit 3
CLK 1
0° 45° 90° 135° 180° 225° 270° 315° 360°
8 positions
[Gray Code]
ELECTRICAL SPEC.
|
Output Code 輸出信號 |
Gray Code and Binary code |
|
Position 刀位 |
4, 6, 8, 10, 12, 16, 20, 24, 30 |
|
Electronics 電路特性 |
PNP Voltage, PNP Open Collector |
|
Power Supply 供應電源 |
DC 8-26V |
|
Current Consumption 消耗電流 |
< 100 mA |
|
Logic |
Positive logic (H=1, L=0) |
|
Max. Response 最大嚮應頻率 |
10K Hz |
|
Polarity 極性保護 |
Against Reverse Protection |
* OPTION: parity 奇偶數位元; odd parity check 奇數位元偵測-夾具動作定位信號 (Please consult our sales department)
MECHANICAL SPEC.
|
Shaft Diameter 軸徑 |
8 mm |
|
Shaft Loading 軸荷重 |
Axial: 2 Kg, Radial: 4 Kg |
|
Max. Speed 最大機械容許速度 |
3,000 rpm |
|
Vibration resistance |
Endurance 55 Hz double amplitude 1.5 mm / |
|
2 hours in X, Y and Z directions |
|
|
|
|
|
Shock resistance |
Endurance 500 m / S2(50g) 3 times each in |
|
X, Y and Z directions |
|
|
|
|
|
Cable |
Ø6, 1000 mm long |
|
Weight |
< 400g |
ENVIRONMENTAL SPEC.
Operating Temp. / Humidity 操作溫度/濕度 -10°C ~ 60°C, RH 35% ~ 90% (No Condensation)
|
Storage Temp. 儲存溫度 |
-20°C ~ 80°C |
|
Protection 保護等級 |
IP 64: dust & dripping proof |
ORDERING INFORMATION
|
A4 - |
Output Code |
- |
|
Position |
- |
Electronics |
- |
Supply Voltage |
- |
Connection |
|
LED Indicator |
||
|
輸出信號 |
|
刀位 |
|
電路特性 |
供應電源 |
|
連接器 |
|
LED 指示燈 |
|||||
|
|
B: Binary Code |
|
4, 6, 8, 10, 12, 16, 20, 24, 30 P/R |
|
PV: PNP Voltage |
|
Blank: 8~26Vdc |
|
Blank: Radial Cable |
|
Blank: without LED |
|||
|
|
G: Gray Code |
|
|
|
|
PC: PNP Open Collector |
|
|
|
|
*R10: Radial 10 pin |
|
*D: with LED |
|
